Choosing the right fireplace mantel is about more than finding a piece of wood you like. The width, depth, thickness and mounting height all affect how the finished fireplace looks and functions in the room.
A mantel that is too short can look undersized over a large fireplace. One that is too deep or visually heavy can overwhelm a smaller space. And before aesthetics even come into the equation, the mantel must be installed at a safe height for the specific fireplace.
Fortunately, choosing the right size becomes much easier when you break the decision into a few individual measurements.
In this guide, we'll walk you through how to measure your fireplace, determine an appropriate mantel length, select the right depth and thickness, and choose a mantel proportion that fits both your fireplace and the surrounding room.
Fireplace Mantel Sizing: The Quick Answer
For most fireplaces, start by considering four dimensions:
- Mantel length: How far the mantel extends horizontally across the fireplace.
- Mantel thickness: The height of the wood beam itself when viewed from the front.
- Mantel depth: How far the mantel projects out from the wall.
- Mounting height: Where the mantel is installed above the fireplace opening.
As a general design starting point, a mantel often looks balanced when it extends approximately 3 to 6 inches beyond the fireplace opening on each side.
Fireplace opening width + approximately 6 to 12 inches = a useful starting range for mantel length.
However, the fireplace opening should not be the only measurement you consider. A wide stone, brick or tile surround can dramatically change the proportions of the fireplace.
The Measurements to Take Before Buying a Fireplace Mantel
Before choosing a mantel, grab a tape measure and record the following:
1. Firebox Opening Width
Measure horizontally from one side of the actual fireplace opening to the other. This gives you the first reference point for determining mantel length.
2. Outside Width of the Fireplace Surround
If the fireplace has stone, brick, tile or another defined surround, measure its total outside width. A mantel may be appropriately sized relative to the firebox but still look too small if it sits above a much wider stone or masonry feature.
3. Available Wall Width
Measure the available space from the fireplace to nearby walls, windows, built-ins, cabinetry or other architectural features. Your mantel should feel intentionally centered within the wall—not squeezed between surrounding elements.
4. Fireplace Opening Height
Measure from the bottom to the top of the fireplace opening. You'll need this when determining where the mantel can safely be installed.
5. Required Clearance Above the Fireplace
Before selecting your final mantel height, determine the required clearance for your specific fireplace.
Fireplace type, mantel projection, manufacturer requirements and applicable building or fire codes can all affect how close combustible materials such as a wood mantel may be installed to the opening.
Do not choose mantel height based on appearance alone.
For factory-built fireplaces, gas fireplaces, inserts and similar units, consult the manufacturer's installation requirements. For masonry fireplaces, verify the requirements that apply in your area. Once the minimum permitted clearance has been established, you can determine the final mounting height based on proportion and room design.
How Wide Should a Fireplace Mantel Be?
Mantel width is one of the most noticeable proportions of the entire fireplace.
A useful starting point is to extend the mantel approximately 3 to 6 inches beyond the firebox opening on each side.
| Fireplace Opening Width | Mantel Length Starting Range |
|---|---|
| 30" | 36–42" |
| 36" | 42–48" |
| 42" | 48–54" |
| 48" | 54–60" |
| 54" | 60–66" |
| 60" | 66–72" |
| 66" | 72–78" |
| 72" | 78–84" |
| 78" | 84–90" |
| 84" | 90–96" |
These measurements are design starting points—not absolute rules. The surrounding fireplace should always be considered.
Don't Ignore the Width of the Fireplace Surround
Imagine a fireplace with a 36-inch opening. Using the table above, you might initially consider a 42- to 48-inch mantel.
But suppose the fireplace also has a 58-inch-wide stone surround. A 42-inch mantel would be wider than the firebox but narrower than the surrounding stone. Depending on the design, that could make the mantel look undersized.
In that situation, a 54- or 60-inch mantel may create a more intentional proportion.
This is why we recommend considering firebox width + surround width + available wall width rather than relying on the firebox measurement alone.
Should the Mantel Be Wider Than the Fireplace Surround?
It can be. There is no single proportion that works for every fireplace.
A mantel that extends beyond the surround can create a strong horizontal architectural line. A mantel that roughly matches the width of the surround can produce a more contained appearance.
The right choice depends on the fireplace, room and look you're trying to achieve. Symmetry is generally more important than following an exact formula.
How Deep Should a Fireplace Mantel Be?
Mantel depth is the distance from the wall to the front edge of the mantel. Depth affects both appearance and usable shelf space.
A shallow mantel has less projection into the room and creates a more restrained profile. A deeper mantel gives you additional decorating surface and can create a more substantial architectural feature.
Modern Timber Craft offers reclaimed wood fireplace mantels in several common proportions, including:
- 3" thick × 5" deep
- 3" thick × 7" deep
- 3" thick × 8" deep
- 4" thick × 8" deep
- 3" thick × 10" deep
- 6" thick × 6" deep saw-cut mantel
- Hand-hewn beam mantels approximately 6–8" thick × 6–8" deep
3" Thick × 5" Deep Mantel
A 5-inch-deep mantel is a good option when you want authentic reclaimed wood without significant projection into the room. It works particularly well for smaller fireplace walls, narrower rooms, cleaner designs and fireplaces where a deep decorating shelf isn't necessary.
3" Thick × 7" Deep Mantel
For many fireplaces, the 3×7 is one of the most versatile proportions. The 7-inch depth creates useful mantel space without the projection of a particularly deep shelf, while the 3-inch thickness keeps the front profile balanced.
3" Thick × 8" Deep Mantel
A 3×8 retains the approximately 3-inch front profile while adding more depth. It can be a good choice when you want additional decorating space, more projection from a deep stone or masonry fireplace, or a substantial mantel without increasing the thickness of the front face.
4" Thick × 8" Deep Mantel
The 4×8 changes more than just shelf depth. That additional inch of thickness creates a larger front-facing surface, giving the mantel more visual weight. A 4×8 can work especially well with larger fireplaces, stone fireplaces, taller rooms and designs where the mantel should be a stronger architectural element.
3" Thick × 10" Deep Mantel
A 3×10 is primarily about additional depth. Because the front face remains approximately 3 inches thick, it doesn't necessarily look dramatically heavier from straight ahead than a 3×7 or 3×8. Instead, the 10-inch depth provides considerably more usable shelf surface.
6" Thick × 6" Deep Saw-Cut Mantel
The 6×6 saw-cut mantel creates a very different visual profile from the 3- and 4-inch-thick mantel shelves. Its square beam proportions provide considerably more front-facing mass while maintaining a 6-inch projection.
This profile works especially well when you want a substantial reclaimed-beam appearance without the irregular dimensions and pronounced axe marks associated with a hand-hewn beam.
How Thick Should a Fireplace Mantel Be?
While depth determines how far the mantel projects from the wall, thickness determines much of the visual weight you see when looking directly at the fireplace.
Consider a 3×10 and a 6×6. The 3×10 projects four inches farther into the room, but the 6×6 has twice the front-face thickness and may look considerably more substantial from straight ahead.
That's why depth and thickness should be chosen independently.

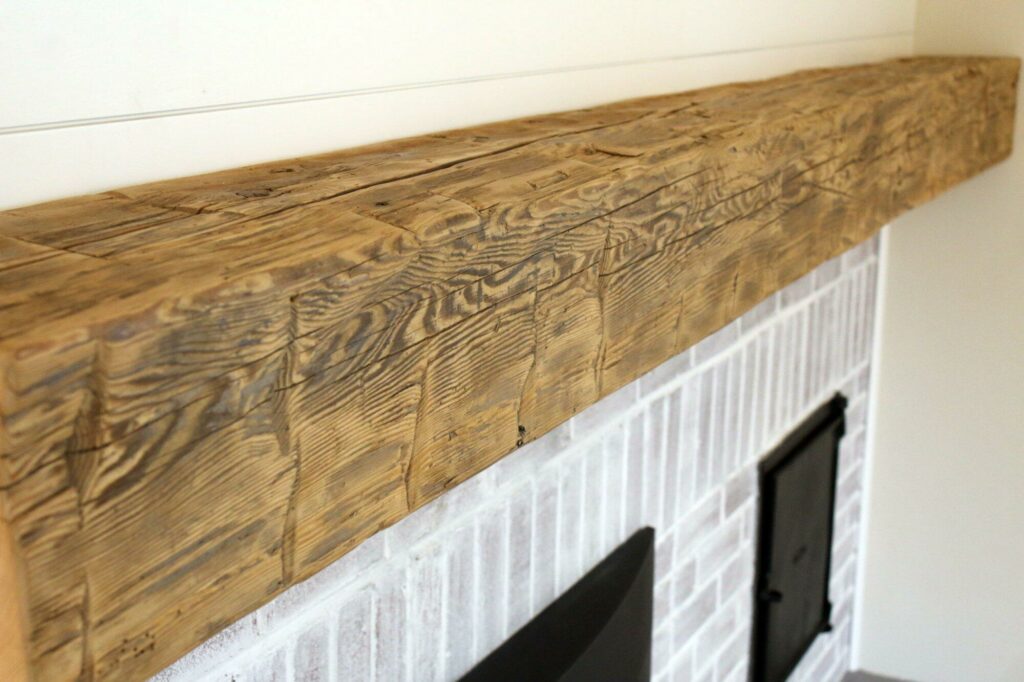

When Should You Choose a Hand-Hewn Beam Fireplace Mantel?
An authentic reclaimed hand-hewn beam has considerably more visual presence than a typical mantel shelf.
Before sawmills and modern power tools became common, craftsmen shaped structural timbers by hand using axes and other tools. The axe marks left behind are still visible centuries later.
Many reclaimed hand-hewn beams also contain evidence of their original structural use, including axe marks, mortise pockets, peg holes, checking, nail holes, irregular edges and natural dimensional variation.
Modern Timber Craft hand-hewn fireplace mantels are authentic reclaimed beams originating from historic barns and structures. Typical mantel dimensions are approximately 6–8 inches thick and 6–8 inches deep, with natural variation from beam to beam.
Hand-hewn mantels work particularly well with large stone fireplaces, tall fireplace walls, vaulted ceilings, open-concept rooms, larger fireboxes, and homes where the fireplace is intended to be a dominant architectural feature.
Want to learn more about the marks and history found in these beams? See Signs That Reveal a Hand Hewn Beam and Hand Hewn or Rough Sawn Beams?
How High Should a Fireplace Mantel Be?
This is where fireplace sizing and fireplace safety intersect.
There is not one universal mantel height that is correct for every fireplace.
You may see recommendations online such as mounting a mantel 54, 60 or 66 inches above the floor. Those measurements may look appropriate in some rooms, but floor height alone does not determine whether a mantel can be safely installed there.
The more important measurement is the relationship between the fireplace opening and the wood mantel above it.
Before choosing your final mounting height:
- Identify your fireplace type.
- Find the manufacturer's installation requirements when applicable.
- Determine the required clearance for combustible materials.
- Consider how far the mantel projects from the wall.
- Confirm applicable local requirements.
- Only then determine the final height based on room proportions.
Once those requirements are satisfied, you can adjust the mantel upward if needed to create the look you want.
If you're mounting to brick, see our guide to installing a mantel on a brick wall.
What About a TV Above the Fireplace?
If a television will be installed above the mantel, you're working with several competing dimensions:
Fireplace → required clearance → mantel → TV
Before ordering the mantel, mark the proposed top of the fireplace opening, mantel bottom, mantel top, television bottom and television top. Painter's tape works extremely well for this. Step back from the fireplace and look at the proportions before making a final decision.
You should also follow the fireplace and television manufacturers' requirements regarding heat exposure and installation.
How Room Size and Ceiling Height Affect Mantel Size
A mantel isn't viewed in isolation. The eye sees the entire composition: fireplace + mantel + wall + ceiling + surrounding architecture.
A 60-inch mantel can look substantial in one room and relatively small in another. Instead of using a rigid ceiling-height formula, think in terms of visual scale.
| Fireplace / Room Character | Good Starting Profiles |
|---|---|
| Smaller or restrained fireplace | 3×5 or 3×7 |
| Typical living room fireplace | 3×7, 3×8 or 4×8 |
| Substantial square-beam look | 6×6 saw-cut |
| Large stone fireplace or tall room | 4×8, 6×6 or hand-hewn |
| Maximum decorating surface | 3×10 |
A Fireplace Mantel Sizing Example
Suppose your fireplace has a 42-inch firebox opening, a 54-inch stone surround, a 9-foot ceiling, and plenty of wall space on both sides.
Step 1: Start with the Firebox
A 42-inch firebox gives us an initial mantel range of approximately 48–54 inches.
Step 2: Consider the Surround
The stone surround is already 54 inches wide. A 48-inch mantel would therefore sit inside the edges of the surround. That isn't necessarily wrong, but if you're looking for a more substantial horizontal element, we'd probably start evaluating 54-inch or 60-inch mantel lengths.
Step 3: Choose the Visual Weight
- 3×5: shallower and more restrained
- 3×7: balanced and versatile
- 3×8: similar front profile with more depth
- 4×8: stronger and more architectural
- 3×10: deeper decorating surface
- 6×6 saw-cut: square, substantial beam profile
- Hand-hewn: substantial historic-beam appearance with approximately 6–8" thickness and depth
How to Visualize Mantel Size Before Ordering
One of the easiest ways to avoid choosing the wrong size is also one of the simplest: use painter's tape.
On the fireplace wall, mark the proposed mantel length, the bottom of the mantel, the top of the mantel and the approximate front-face thickness.
If you're deciding between 54 and 60 inches, mark both. If you're deciding between a 3-inch, 4-inch or 6-inch-thick mantel, mark those differences as well.
Then stand across the room and look at the fireplace from the places you normally see it: the sofa, kitchen, entryway, adjacent room and side angles.
For depth, hold a tape measure or piece of cardboard perpendicular to the wall to visualize how far 5, 6, 7, 8 or 10 inches will project into the room.
Original Surface, Saw-Cut and Planed Reclaimed Wood
Dimensions aren't the only thing that affects visual weight. Surface character matters too.
An original-surface reclaimed mantel may include pronounced saw marks, weathering, checking, nail holes, peg holes and other evidence of the wood's previous life. A 6×6 saw-cut mantel combines a substantial square-beam profile with historic sawn character. A planed and sanded reclaimed mantel retains the history and character of the original material while offering a smoother, cleaner profile.
Hand-hewn mantels add another visual dimension through original axe marks, mortise pockets, peg holes, irregular edges and natural dimensional variation.
Two mantels with similar overall dimensions can therefore create very different impressions.
Common Fireplace Mantel Sizing Mistakes
Choosing Length Based Only on the Firebox
The firebox is important, but don't ignore a wide stone, brick or tile surround. Look at the fireplace as a complete architectural feature.
Assuming Deeper Means Heavier Looking
Depth and thickness aren't the same thing. A 3×10 has more shelf space, while a 6×6 has considerably more front-facing mass.
Choosing Mantel Height Before Checking Clearance
A mantel may look perfect at a particular height and still be inappropriate for the fireplace. Establish required clearances first.
Forgetting About the TV
A television can dramatically change the available vertical space. Lay out the complete wall before ordering.
Ignoring the Room
A mantel should be proportional not only to the fireplace, but also to the wall and surrounding room.
Going Too Small Because You're Nervous About Going Too Large
This happens frequently with large masonry fireplaces. A mantel that extends only slightly past the firebox can get visually lost against a large wall of stone or brick. Use the surround measurement as your second reference point.
Assuming Every Piece of Reclaimed Wood Will Be Dimensionally Identical
Authentic reclaimed wood is not manufactured like new dimensional lumber. Historic timbers can contain natural variation, checking, irregular edges, axe marks, saw marks and other characteristics developed over decades or centuries. Those variations are part of what makes each mantel unique.
Fireplace Mantel Sizing FAQs
How much wider should a mantel be than the fireplace?
As a design starting point, consider approximately 3 to 6 inches beyond each side of the fireplace opening, or roughly 6 to 12 inches wider overall. Then compare that length with the outside width of the fireplace surround and the available wall space.
Should the mantel be wider than the fireplace opening?
Usually, yes. Extending the mantel beyond both sides of the firebox generally creates a more balanced horizontal proportion.
Should the mantel be wider than a stone surround?
Not necessarily. A mantel may sit inside the surround, align approximately with it or extend beyond it depending on the architecture and desired look.
What is a good mantel depth?
There is no single ideal depth. A shallower 5-inch mantel creates less projection, while 7- and 8-inch depths provide more decorating space. A 10-inch-deep mantel provides an especially generous shelf surface. A 6×6 mantel creates a square-beam profile with substantially more front-face thickness.
Is a 3-inch-thick mantel too thin?
For many fireplaces, approximately 3 inches creates an excellent beam-style profile. If you want additional visual weight, consider a 4-inch-thick mantel, a 6×6 saw-cut mantel or a substantial hand-hewn beam.
What size mantel should I use for a 36-inch fireplace?
A useful starting point is approximately 42–48 inches long. Then compare that measurement with the fireplace surround and wall.
What size mantel should I use for a 42-inch fireplace?
Start by considering approximately 48–54 inches. A wider surround may make a 54- or 60-inch mantel more proportional.
What size mantel should I use for a 48-inch fireplace?
Approximately 54–60 inches is a useful starting range. Again, use the entire fireplace surround as a visual reference.
Can I order a custom mantel size?
Yes. If one of our standard reclaimed wood mantel dimensions doesn't fit your fireplace, Modern Timber Craft can produce custom dimensions for many mantel styles.
Still Not Sure What Size Mantel You Need?
You don't have to make the decision from product dimensions alone.
Before ordering, measure your fireplace opening width, outside surround width, available wall width, fireplace opening height, required clearance above the fireplace and the approximate mantel depth you're considering.
A photo of the entire fireplace wall can also be extremely helpful when evaluating proportion.
Whether you're looking for a slimmer 3×5 profile, the versatility of a 3×7 or 3×8, the added visual weight of a 4×8, the decorating surface of a 3×10, the substantial square profile of a 6×6 saw-cut mantel, or the unmistakable character of an original hand-hewn beam, the goal is the same:
Choose a mantel that fits the fireplace, fits the room and looks like it belongs there.
Modern Timber Craft fireplace mantels are handcrafted from authentic reclaimed wood sourced from historic barns and structures throughout the Eastern United States. Every piece carries its own grain, coloring, axe marks, saw marks and characteristics developed during its previous life.
The dimensions help you choose the right proportion. The reclaimed wood makes the finished mantel one of a kind.
Written by Jake Park
Jake is the founder of Modern Timber Craft and is a seasoned reclaimed woodworking enthusiast with over 20 years experience.
